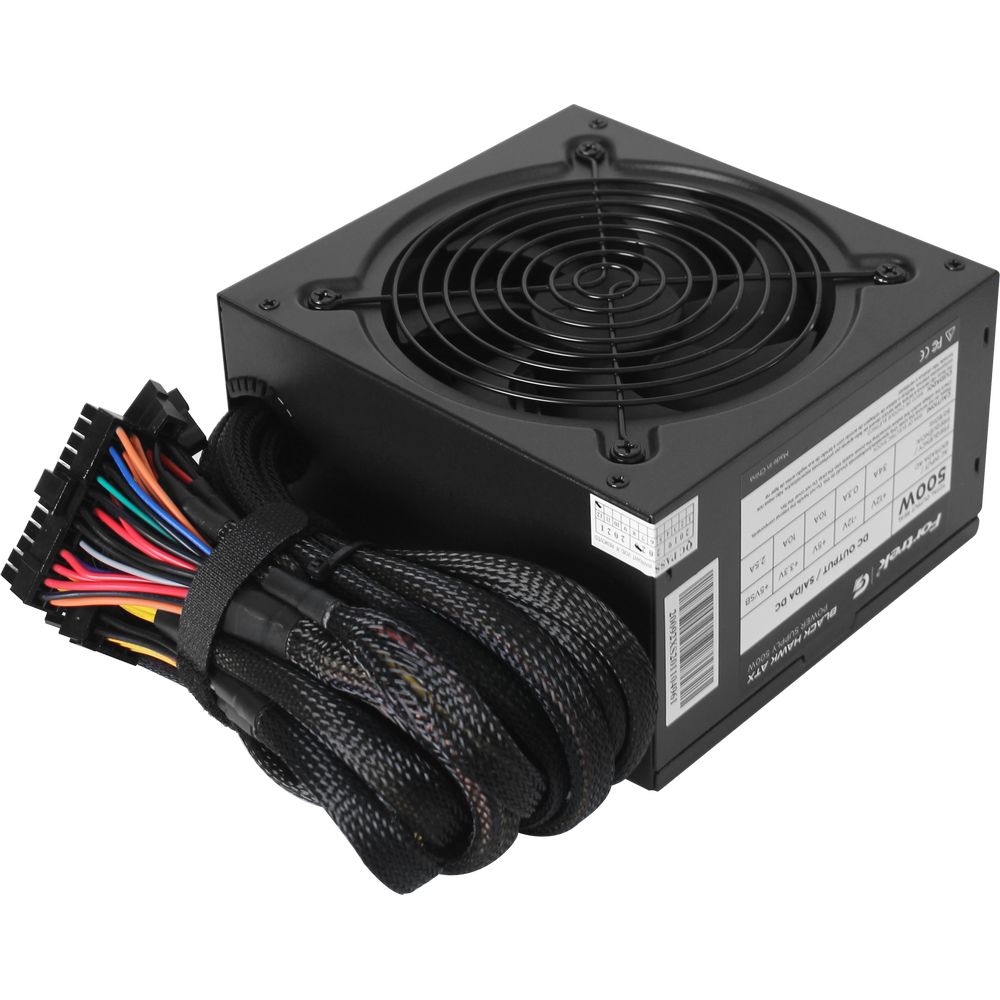

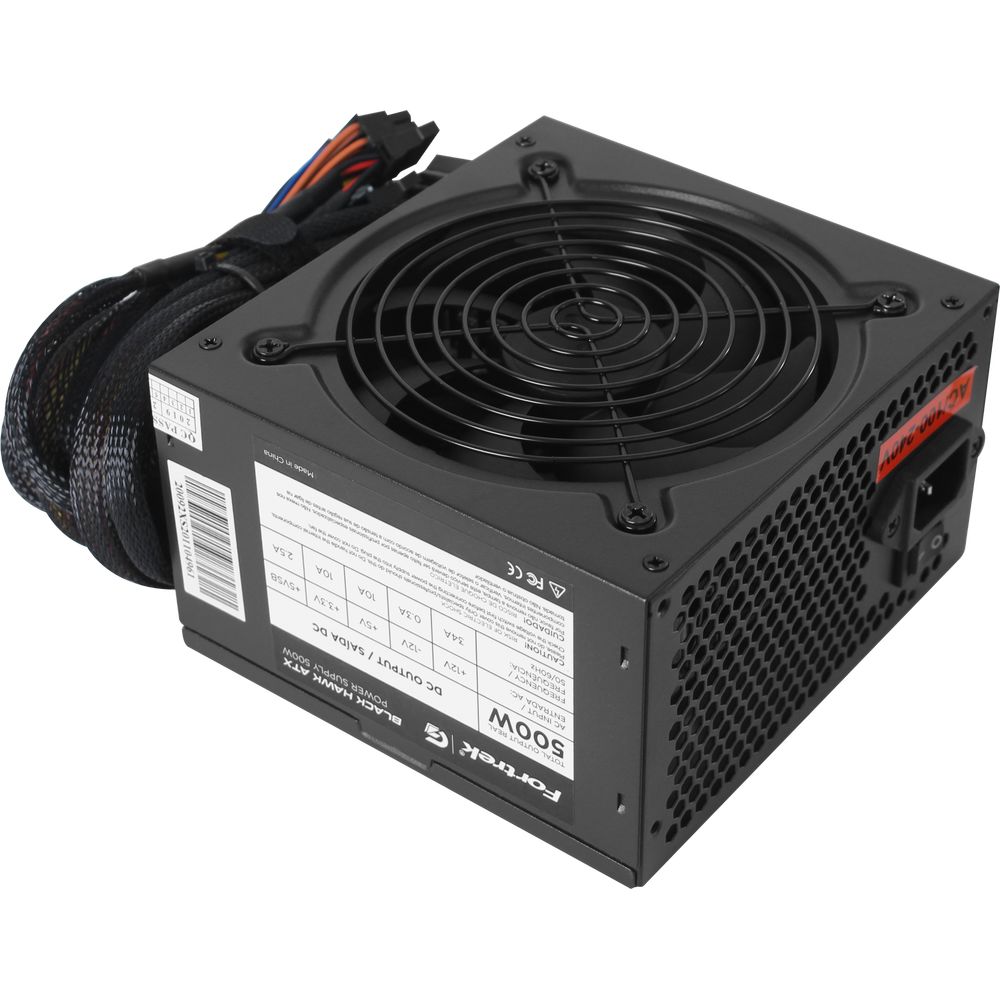

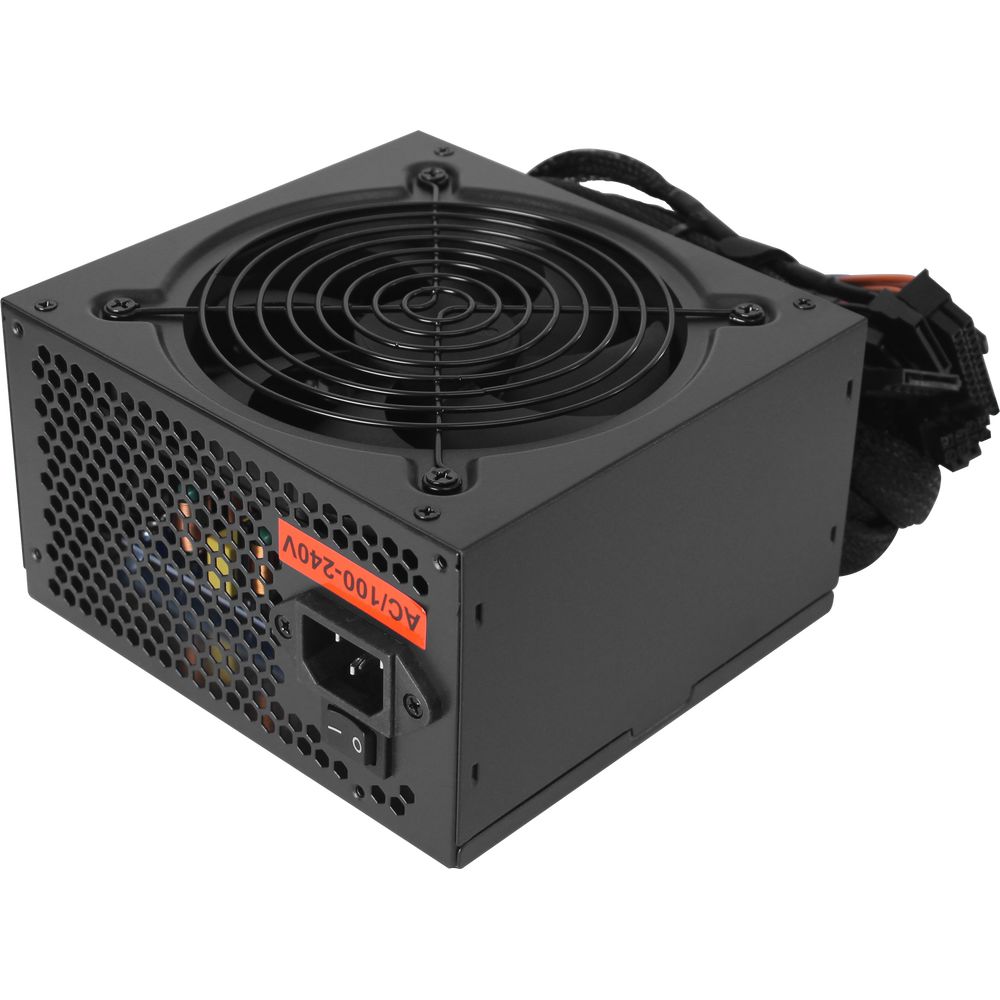

Specifications
In stock
The minimum efficiency of power supply should be over than 82% under the 100% load and 20% load. And should be over 85% under the 50% load. Load measurements are performed at 100-240Vac/50Hz input.
Efficiency test condition as below:
| Load | +5V | +3.3V | +12V | -12V | +5Vs | Total (W) | EFF% |
| 20%. Load | 2 | 2 | 6.8 | 0.06 | 0.4 | 100W | 82% |
| 50%. Load | 5 | 5 | 17 | 0.15 | 1 | 250W | 85% |
| 100%. Load | 10 | 10 | 34 | 0.3 | 2.0 | 500W | 82% |
| Output Voltage | MIN | MAX | Combined | Total |
| +5V | 0.2A | 10A | 100W | 500W |
| +3.3V | 0.1A | 10A | ||
| +12V | 0.6A | 34A | 450W | |
| -12V | 0.0A | 0.3A | 3.6W | |
| +5Vsb | 0.05A | 2.0A | 10W |
The cross regulation is defined in the matrix below:
| Load | +5V | +3.3V | +12V | -12V | +5Vs | Remark |
| (1) | 6 | 10 | 5 | 0.3 | 2.0 | +3.3V Max |
| (2) | 10 | 3 | 6 | 0.3 | 2.0 | +5V Max |
| (3) | 5 | 0.5 | 34 | 0.3 | 1.0 | +12V Max |
| (4) | 10 | 10 | 34 | 0.3 | 2.0 | Full load |
| (5) | 5.0 | 5.0 | 17 | 0.15 | 1.0 | Half load |
| (6) | 0.2 | 0.1 | 0.6 | 0.0 | 0.05 | Min load |
UVP Min. Typ. Max.
12V 13.2V 13.8V 14.4V
5V 5.7V 6.1V 6.5V
3.3V 3.7V 3.9V 4.1V
The power supply should provide +5V, +3.3Vand +12V OCP and should shutdown of each output power. For testing purposes, the overload currents of each tested output rail should be ramped at a minimum rate of 10A/sec.
The short circuit placed on +3.3V, +5V, + 12V and –12V output shall cause no damage and the power supply shall shut down and latch.
When the power supply latches into shutdown condition due to a fault on output (Over-Current, Over-Voltage, Short circuit), the protection latch must reset at after the fault has been removed and the on/off signal has switched state.
The power supply shall be shut down and latch off, if the wattage of the power supply is higher from 550W to 750W.
| Weight | 2.5 kg |
|---|---|
| Dimensions | 22 × 16 × 9.5 cm |
| Brand | |
| Output Voltage | 500W |
| Manufacturer Warranty | |
| Product Type | |
| Connectivity | |
| Features | 80 Plus Bronze, Active Power Factor Correction, Noise Filtering |
| Form Factor | ATX |
